The Definitive Engineering Guide to Direct Coupling Roots Blowers

1. Direct Coupling Roots Blowers: Core Concept

2. Zimango za Direct-Coupled Rotary Positive Displacement

3. Ubwino Wantchito Pamachitidwe Oyendetsa Lamba

4. Kuyika & Kuyanjanitsa: Kulondola kwa Moyo Wautali

5. Ma Protocol a Maintenance for Direct Drive Units

6. Zovuta Zamakampani

7. Zofunikira Zaukadaulo & Kalozera Wosankha

8. Mafunso Ofunsidwa Kawirikawiri (FAQ)

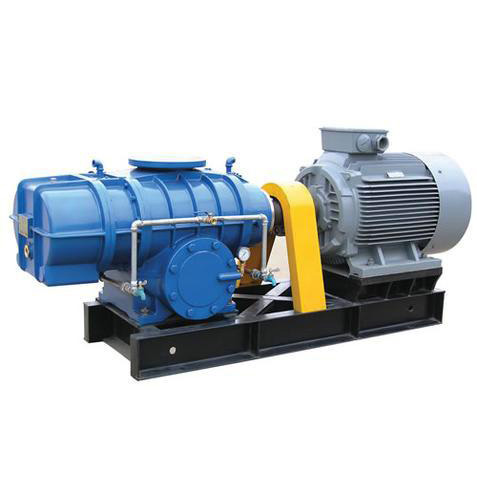

1. Direct Coupling Mizu Blowers: Core Concept

Pakatikati pa njira zambiri zamafakitale, kuyambira kuyeretsa madzi onyansa mpaka kutumiza mpweya, pali ukadaulo wamphamvu wamagetsi.Direct Coupling Roots Blowers. Mosiyana ndi njira zina zoyendetsedwa ndi lamba, mayunitsiwa amakhala ndi ulalo wachindunji wamakina pakati pa mota ndi shaft yowulutsira kudzera pakulumikiza. Kusiyanitsa komwe kumawoneka kosavuta kumeneku kumabweretsa phindu lalikulu pakuchita bwino, kulimba, komanso kukhazikika kwa magwiridwe antchito. Pochotsa lamba, dongosololi limathetsa vuto lofanana la kuvala ndi kutaya mphamvu, kupangitsa Direct Coupling Roots Blowers kukhala chisankho chokonda pakugwiritsa ntchito mosalekeza komwe kudalirika ndikofunikira.

Kukonzekera kwachindunji kumeneku kumawonetsetsa kuti liwiro lozungulira la mota limasamutsidwa ndendende ku ma impellers, ndikupereka mpweya wosasunthika, wopanda mpweya womwe ndi wofunikira kwambiri pamachitidwe monga kutulutsa mpweya mu chithandizo chachilengedwe kapena zoyendera zakuthupi muzomera za simenti. Malingaliro ake amatengera kutayika kochepa kwa makina komanso nthawi yayitali kwambiri, ndichifukwa chake mafakitale omwe ali ndi mbiri yofunikira kwambiri amatengera njira yoyendetsera iyi pamalamba azikhalidwe.

2. Makina a Direct-Coupled Rotary Positive Displacement

Direct Coupling Roots Blowersgwirani ntchito panjira yabwino yosamutsira, kugwiritsa ntchito zozungulira ziwiri kapena zitatu zomwe zimazungulira mbali zosiyana mkati mwa casing yopangidwa bwino. Kuphatikizika kwachindunji kumatsimikizira kuti ma rotorswa amasunga kulumikizana kwenikweni, motsogozedwa ndi zida zanthawi zomwe zimalepheretsa kukhudzana kwachitsulo ndi chitsulo. Pamene ma lobes amazungulira, amatchera mpweya wokhazikika pa doko lolowera ndikupita nawo kumbali yotuluka, kumene amatulutsidwa motsutsana ndi mphamvu ya dongosolo.

The kiyi makina ubwino wagona lumikiza palokha. Kulumikizana kosinthika, komwe nthawi zambiri kumakhala ngati taper-lock, kumalumikiza shaft ya motor ku shaft yowulutsira, kutengera zolakwika zazing'ono pomwe ikutumiza torque bwino. Kuyendetsa kwachindunji kumeneku kumachotsa kutsetsereka komwe kumachitika mu lamba, kuwonetsetsa kuti chowombera chimagwira ntchito moyenera pa liwiro lake, lomwe limalumikizana mwachindunji ndi liwiro lotsimikizika la volumetric. Mkhalidwewu ndi wofunikira pazigawo zomwe zimafunikira mpweya wokhazikika, womwe umakhala ndi metered, monga mankhwala a dosing kapena ma fluidized bed reactors.

3. Ubwino Wantchito Pamachitidwe Oyendetsa Lamba

Mukawunika Direct Coupling Roots Blowers motsutsana ndi ma lamba, zosiyanitsa zingapo zimatuluka. Choyamba, kugwirizana kwachindunji kumathetsa kugwedezeka kwa lamba ndi kuvala, zomwe sizimangochepetsa nthawi yokonza komanso zimalepheretsa kuchepa kwapang'onopang'ono pamene malamba amatambasula pakapita nthawi. Chachiwiri, kusakhalapo kwa lamba ndi msonkhano wa pulley kumachepetsa kuchuluka kwa phazi ndi kulemera kwa chipangizocho, kumathandizira kuyika ndikuphatikizana m'mapangidwe opangira mbewu.

Kuphatikiza apo, makina oyendetsa mwachindunji amawonetsa kugwedera kocheperako ndipo amagwira ntchito mwakachetechete, zomwe zimapangitsa kuti pakhale malo otetezeka komanso omasuka. Kuwonongeka kwa makina kumatanthawuza kuti zigawo zochepa zimalephera, kupititsa patsogolo kudalirika kwa dongosolo lonse. M'mapulogalamu omwe malo ali olephereka kapena komwe kumapitilira, ntchito yolemetsa kwambiri ikufunika, kulumikizana kwachindunji kumapereka mwayi wotsimikizika potengera kukhazikika kwa magwiridwe antchito komanso kuganizira mtengo wa moyo.

4. Kuyika & Kuyanjanitsa: Kulondola kwa Moyo Wautali

Kutumiza bwino kwaDirect Coupling Roots Blowerszimatengera kukhazikitsa mosamala, makamaka kuyika shaft. Ngakhale kusamalidwa pang'ono kungayambitse kugwedezeka kwakukulu, kuvala msanga, komanso kutopa kolumikizana. Njira zabwino zamakampani zimatsimikizira kuti ma halves ophatikizana ayenera kuyikidwa ndi zosokoneza, zomwe nthawi zambiri zimafuna kutenthetsa koyendetsedwa bwino, kuti zitsimikizire kulumikizana kotetezeka ndi ma shaft.

Kuyanjanitsa koyenera kumaphatikizapo kuyang'ana zopatuka zonse komanso za angular. Kuti mukhale ndi moyo wabwino wautumiki, chiwerengero chonse chowerengera chizindikiro (TIR) ​​pa ma coupling hubs sichiyenera kupitirira mainchesi 0.005 (0.13 mm), ndipo kupatuka kofananira kwa nkhope zolumikizira kuyenera kukhala mkati mwa mainchesi 0.001 (0.03 mm). Kuonjezera apo, ndikofunikira kukhazikitsa kusiyana koyenera kwa axial pakati pa ma halves ophatikizana kuti athe kukulitsa kutentha kwa ma shafts panthawi yogwira ntchito, kuteteza kutsitsa kwamphamvu komwe kungathe kuwononga zida zamkati za chowombera. Kugwiritsa ntchito cholumikizira cha taper-lock tikulimbikitsidwa kuti mutsimikizire kufalikira kwa torque komanso kuchotsa mosavuta.

5. Ma Protocol a Maintenance for Direct Drive Units

Ngakhale kuti Direct Coupling Roots Blowers imafuna kulowererapo pafupipafupi kusiyana ndi mayunitsi oyendetsedwa ndi lamba, ndondomeko yokonzekera ndiyofunikira. Magawo oyambilira akuphatikiza kudzoza kwa gearbox ndi ma bearings, kuyang'anira kophatikizana, ndikutsimikizira kulondola kwake. Kusintha kwamafuta pafupipafupi pogwiritsa ntchito mafuta opangira omwe amalangizidwa ndi wopanga kumalepheretsa kuvala kwa zida ndikuwonetsetsa kuti zikuyenda bwino.

Kuyang'ana nthawi ndi nthawi kuyenera kuphatikizira kuyang'ana zowoneka ngati zatha kapena ming'alu, ndikuwongoleranso zomangira kuzinthu zomwe zatchulidwa. Kuwunikira kugwedezeka kumatha kukhala ngati chida cholosera chokonzekera, kuzindikira zizindikiro zoyambilira za kusalinganika kapena kusanja bwino. Kuonjezera apo, kuwonetsetsa kuti fyuluta ya mpweya wolowetsamo ndi yoyera komanso yosasunthika kumateteza ma rotor kuti asawonongeke, kusunga mpweya wabwino, wopanda mafuta omwe ndi chizindikiro cha owombera awa.

• Tsiku ndi Tsiku:Yang'anani kuchuluka kwa mafuta, mverani phokoso lachilendo, yang'anani kuthamanga kwamadzi & kutentha.
• Mwezi uliwonse:Yang'anani zolumikiza ngati zavala, tsimikizirani momwe zimayendera, zosefera zoyera.
• Kotala:Sinthani magiya mafuta, fufuzani mayendedwe, fufuzani zonse zomangira torque.
• Chaka chilichonse:Kukonzanso kwathunthu, kuphatikiza kuyeza kwa rotor chilolezo ndikusintha chisindikizo.

6. Ntchito Zovuta Kwambiri za Industrial

Mapangidwe amphamvu ndi magwiridwe antchito odalirika a Direct Coupling Roots Blowers zimawapangitsa kukhala ofunikira m'magawo osiyanasiyana. Pochiza madzi oyipa, amapereka mpweya wofunikira pakugaya kwa aerobic, kuwonetsetsa kuwonongeka kwachilengedwe kwa zinthu zachilengedwe. M'makampani opanga zam'madzi, amakhalabe ndi mpweya wokwanira wosungunuka m'mayiwe ndi akasinja, zomwe zimakhudza mwachindunji thanzi la masheya ndi zokolola.

Pogwira zinthu zambiri, zowuzira izi zimagwiritsidwa ntchito potengera mpweya kunyamula simenti, mbewu, mapulasitiki, ndi ufa wina kudzera m'mapaipi. Kuyenda kwa mpweya wokhazikika, wothamanga kwambiri kumatsimikizira kusamutsa kwazinthu kosasinthasintha komanso kothandiza pa mtunda wautali. Ntchito zina zazikuluzikulu ndikuphatikiza kuyatsa kwa mpweya m'ng'anjo, kukwera kwa gasi m'mafakitale a petrochemical, ndi ntchito zonyamula vacuum, zomwe zikuwonetsa kusinthasintha kwaukadaulowu pamafakitale ambiri.

Magawo Ofunika Kwambiri:Wastewater Aeration · Aquaculture · Pneumatic Conveying · Sement Industry · Power Plants · Chemical Processing · Biogas Handling

7. Zofunikira Zaumisiri & Zosankha Zosankha

Kusankha choyeneraDirect Coupling Roots Blowerspakugwiritsa ntchito kumafuna kusanthula mosamalitsa kuchuluka kwa kuthamanga, kuthamanga, ndi zofunikira za mphamvu. Mayunitsi odziwika amapereka mitengo yotsika kuyambira pa 0.6 m³/mphindi kufika kupitirira 120 m³/min, ndi kukha magazi kotuluka mpaka 98 kPa. Mphamvu zamagalimoto zimatha kuchokera ku 1.1 kW kwa mayunitsi ang'onoang'ono kupita ku 185 kW pamamodeli amakampani akuluakulu.

Mukatchula chowuzira, ganizirani za kuthamanga kosiyana kofunikira, kuchuluka kwa kuthamanga komwe mukufuna, komanso momwe mumagwirira ntchito. Kapangidwe ka rotor kokhala ndi ma lobe atatu kwakhala mulingo wamakampani pamayendedwe ake owongolera komanso kuchita bwino poyerekeza ndi mapangidwe akale a ma lobe awiri. Kuyang'ana ma curve ogwirira ntchito ndi zidziwitso zaukadaulo ndikofunikira kuwonetsetsa kuti blower yomwe yasankhidwa ikugwira ntchito moyenera, ikupereka ntchito yodalirika pazomwe mukufuna.
